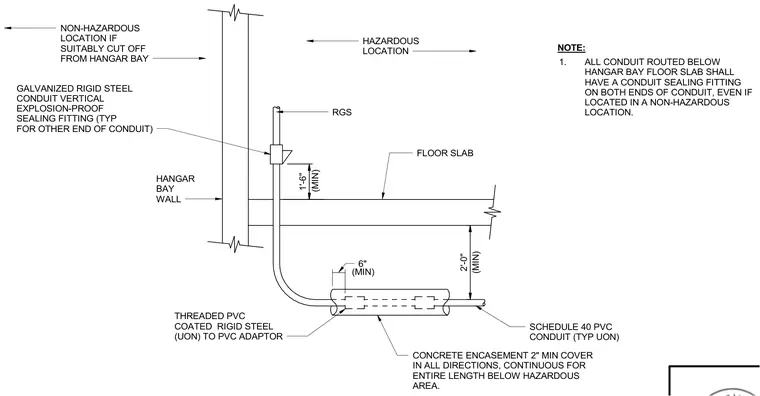

A transition occurs from a galvanized rigid steel conduit in a hazardous hangar bay location to a Schedule 40 PVC conduit routed below the concrete floor slab. A vertical explosion-proof sealing fitting is installed on the rigid steel conduit at a minimum of one foot six inches above the floor slab. A threaded PVC-coated rigid steel to PVC adapter connects the vertical run to the underground conduit. The PVC conduit is encased in concrete with a minimum two-inch cover in all directions, maintained continuously for the entire length below the hazardous area. All conduit routed below the hangar bay floor slab requires a conduit sealing fitting on both ends, even when terminating in a non-hazardous location.
SCHEDULE 40 PVC CONDUIT (TYP UON) CONCRETE ENCASEMENT 2" MIN COVER IN ALL DIRECTIONS, CONTINUOUS FOR ENTIRE LENGTH BELOW HAZARDOUS AREA. NON-HAZARDOUS LOCATION IF SUITABLY CUT OFF FROM HANGAR BAY THREADED PVC COATED RIGID STEEL (UON) TO PVC ADAPTOR HANGAR BAY WALL RGS HAZARDOUS LOCATION FLOOR SLAB (MIN) (MIN) 6" (MIN) GALVANIZED RIGID STEEL CONDUIT VERTICAL EXPLOSION-PROOF SEALING FITTING (TYP FOR OTHER END OF CONDUIT) NOTE: 1. ALL CONDUIT ROUTED BELOW HANGAR BAY FLOOR SLAB SHALL HAVE A CONDUIT SEALING FITTING ON BOTH ENDS OF CONDUIT, EVEN IF LOCATED IN A NON-HAZARDOUS LOCATION. 1'-6" 2'-0"
