An insulated cable passes through a reinforced concrete grade beam with a quantity of conduits per system as indicated on drawings. The electrical utility or service feed penetrates the structural concrete foundation element with typical insulated cabling details.

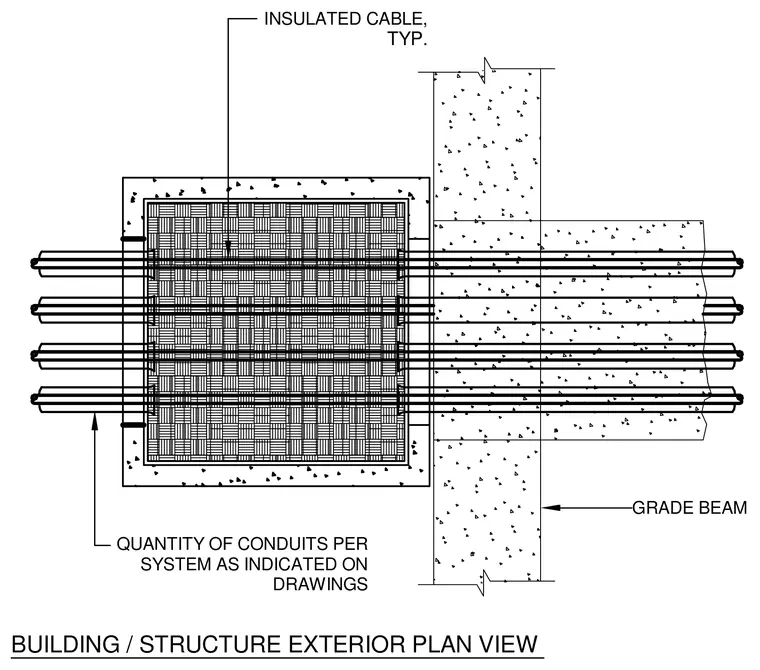

BUILDING / STRUCTURE EXTERIOR PLAN VIEW INSULATED CABLE, TYP. GRADE BEAM QUANTITY OF CONDUITS PER SYSTEM AS INDICATED ON DRAWINGS
