Underground Electrical Trench Detail with Concrete Slurry Cap

Materials

Elements

About this detail

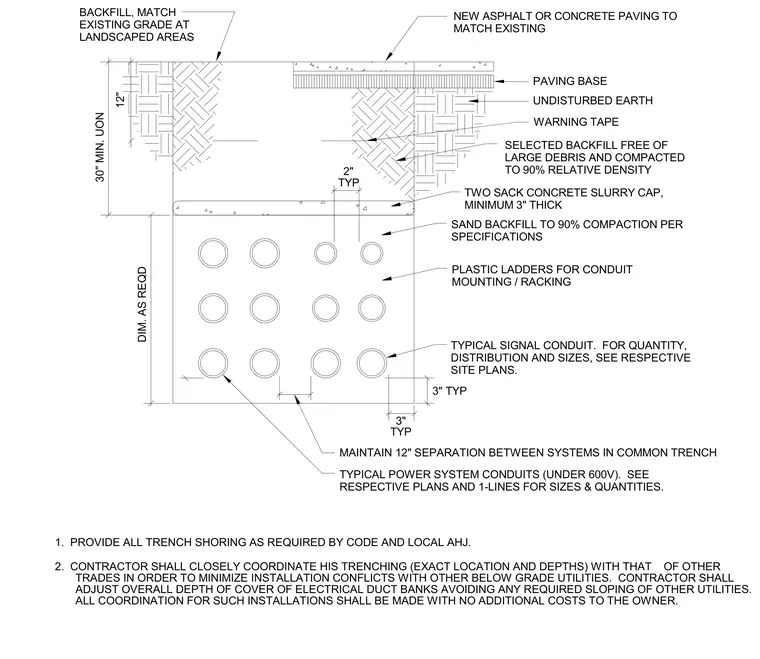

An underground electrical trench houses power system conduits and signal conduits arranged on plastic ladders within a sand backfill bed. A minimum three-inch thick two-sack concrete slurry cap sits above the sand, overlaid by selected backfilled earth or a paving base supporting new asphalt or concrete paving. Warning tape is positioned above the trench bed, maintaining a minimum thirty-inch depth of cover unless otherwise noted. A twelve-inch separation is maintained between different utility systems within the common trench.
