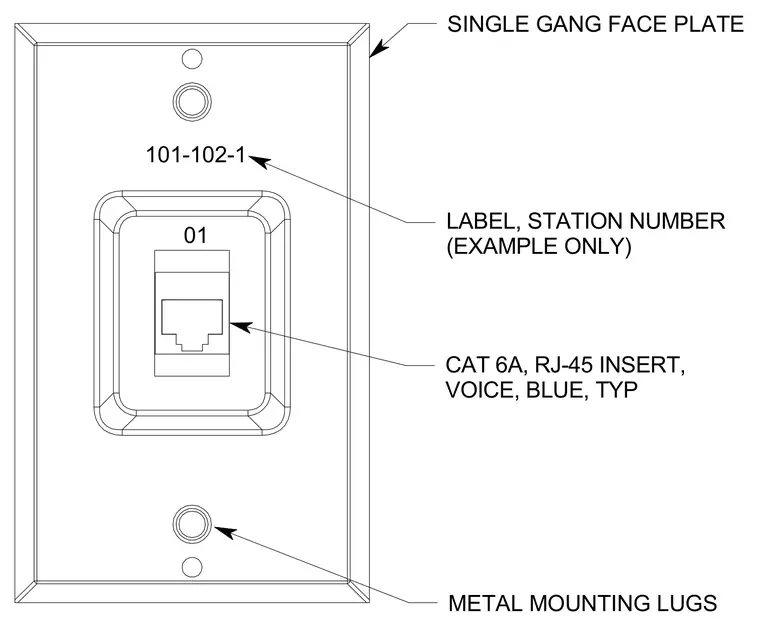

A single gang face plate houses a blue Category 6A RJ-45 insert configured for voice applications. Metal mounting lugs secure the plate to the back box. An example station number label identifies the port designation on the face plate.
101-102-1 METAL MOUNTING LUGS CAT 6A, RJ-45 INSERT, VOICE, BLUE, TYP LABEL, STATION NUMBER (EXAMPLE ONLY) SINGLE GANG FACE PLATE 01
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
