Lighting Control Panel Wiring Diagram

Materials

Elements

About this detail

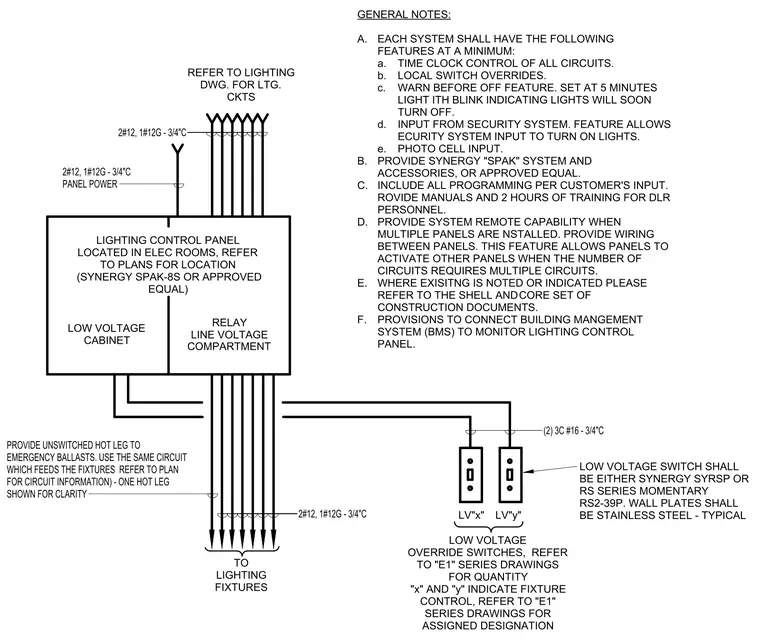

Wiring connections for a lighting control panel, featuring a low voltage cabinet and a line voltage compartment. Power feeds to the panel and outgoing circuits to lighting fixtures utilize two number twelve wires, one number twelve ground in a three-quarter inch conduit. Low voltage override switches connect via two three-conductor number sixteen cables in a three-quarter inch conduit with stainless steel wall plates. General notes specify minimum system features including time clock control, local switch overrides, security system integration, and photocell inputs.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
