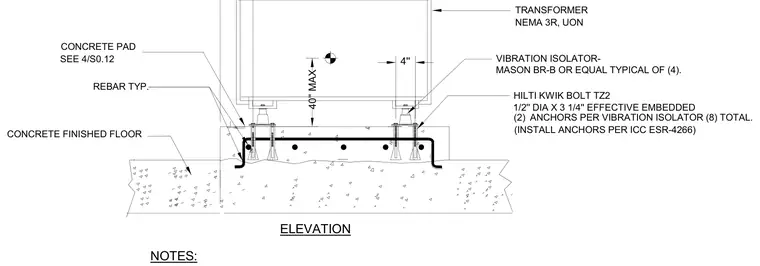

An interior electrical transformer with a NEMA 3R enclosure is mounted on four Mason BR-B or equal vibration isolators. Each vibration isolator is secured with two half-inch diameter by three-and-a-quarter-inch effective embedment Hilti Kwik Bolt TZ2 anchors, totaling eight anchors in all, installed per ICC ESR-4266. The isolators rest on a reinforced concrete pad placed over the concrete finished floor. Reinforcing rebar is detailed throughout the concrete pad, with the pad dimensions and reinforcement sized per structural sheet 4/S0.12.
NOTES: CONCRETE FINISHED FLOOR ANCHORS PER VIBRATION ISOLATOR (8) TOTAL. NEMA 3R, UON TRANSFORMER (2) ELEVATION VIBRATION ISOLATOR- MASON BR-B OR EQUAL TYPICAL OF (4). HILTI KWIK BOLT TZ2 1/2'' DIA X 3 1/4'' EFFECTIVE EMBEDDED CONCRETE PAD 40'' MAX SEE 4/S0.12 (INSTALL ANCHORS PER ICC ESR-4266) REBAR TYP. 4''
