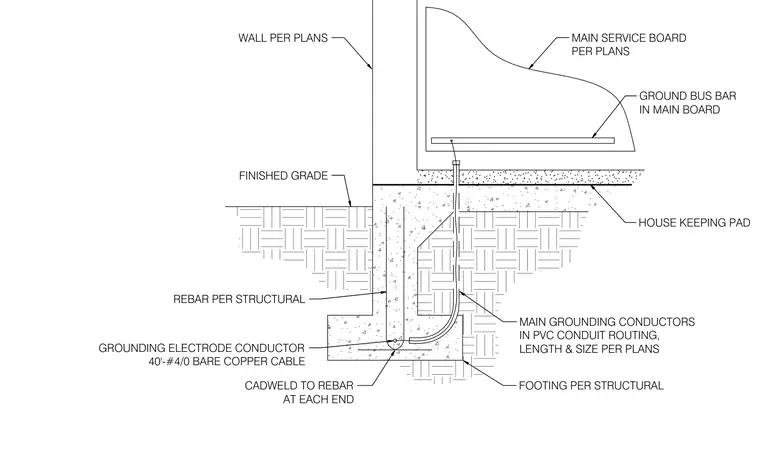

A grounding electrode conductor consisting of forty feet of number four-ought bare copper cable is encased within the concrete footing per structural requirements. The conductor is secured to the reinforcing steel at each end using exothermic cadweld connections. Main grounding conductors route upward from the footing through PVC conduit into the main service board, terminating at a ground bus bar located above a housekeeping pad.
GROUNDING ELECTRODE CONDUCTOR 40'-#4/0 BARE COPPER CABLE CADWELD TO REBAR AT EACH END FOOTING PER STRUCTURAL MAIN GROUNDING CONDUCTORS IN PVC CONDUIT ROUTING, LENGTH & SIZE PER PLANS HOUSE KEEPING PAD MAIN SERVICE BOARD PER PLANS GROUND BUS BAR IN MAIN BOARD WALL PER PLANS FINISHED GRADE REBAR PER STRUCTURAL
