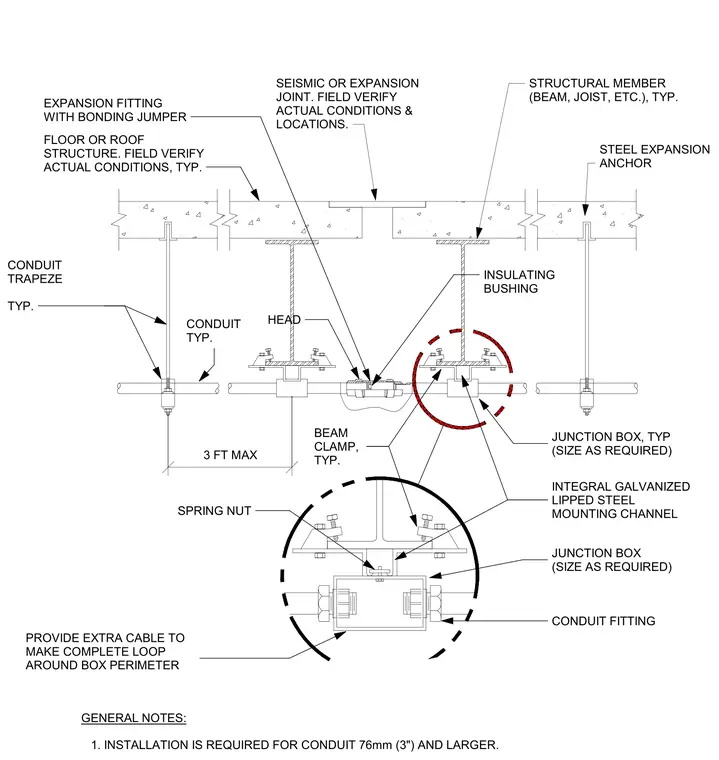

Electrical conduits are supported by a trapeze hung from structural members such as beams or joists via steel expansion anchors and beam clamps. An expansion fitting with a bonding jumper bridges the seismic or expansion joint in the floor or roof structure. A junction box is mounted to an integral galvanized lipped steel mounting channel using spring nuts. Extra cable is provided to make a complete loop around the box perimeter for slack. This installation is required for conduits seventy-six millimeters three inches and larger.
JUNCTION BOX, TYP (SIZE AS REQUIRED) INTEGRAL GALVANIZED LIPPED STEEL MOUNTING CHANNEL JUNCTION BOX (SIZE AS REQUIRED) CONDUIT FITTING SEISMIC OR EXPANSION JOINT. FIELD VERIFY ACTUAL CONDITIONS & LOCATIONS. STRUCTURAL MEMBER (BEAM, JOIST, ETC.), TYP. STEEL EXPANSION ANCHOR INSULATING BUSHING HEAD CONDUIT TYP. CONDUIT TRAPEZE TYP. BEAM CLAMP, TYP. SPRING NUT PROVIDE EXTRA CABLE TO MAKE COMPLETE LOOP AROUND BOX PERIMETER GENERAL NOTES: 1. INSTALLATION IS REQUIRED FOR CONDUIT 76mm (3") AND LARGER. FLOOR OR ROOF STRUCTURE. FIELD VERIFY ACTUAL CONDITIONS, TYP. EXPANSION FITTING WITH BONDING JUMPER 3 FT MAX
