Electrical · E-9DSAT

Diagram

About this detail

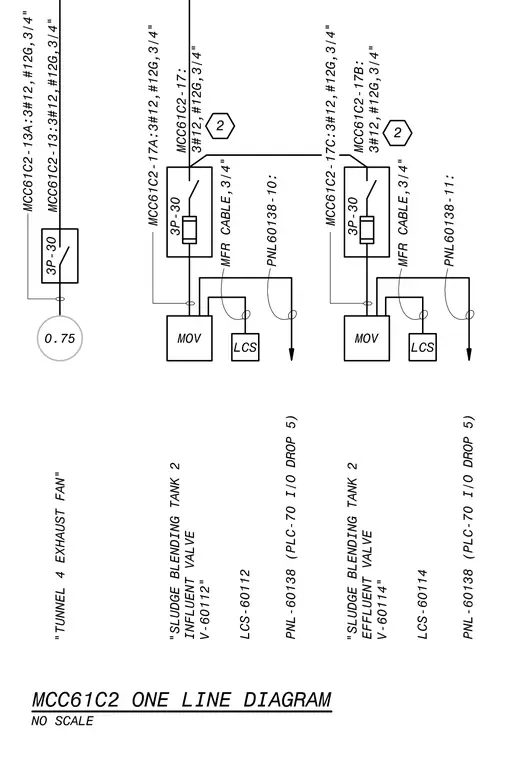

This electrical one-line diagram details circuit configurations originating from motor control center MCC61C2 for the sludge blending tank 2 influent valve V-60112, effluent valve V-60114, and tunnel 4 exhaust fan. The diagram specifies three number twelve conductors with one ground in a three-quarter inch conduit, protected by three-pole thirty-ampere circuit breakers. Connections include local control stations, motor-operated valves, manufacturer cables, and PLC input-output drops tied to panel PNL-60138.
