The cable basket tray is supported by Unistrut channels suspended from threaded rods. Washers and nuts are installed above and below each Unistrut support. The basket tray is secured directly to the Unistrut according to the manufacturer's specifications. Unistrut supports must be installed one foot from any cable basket tray splice point.

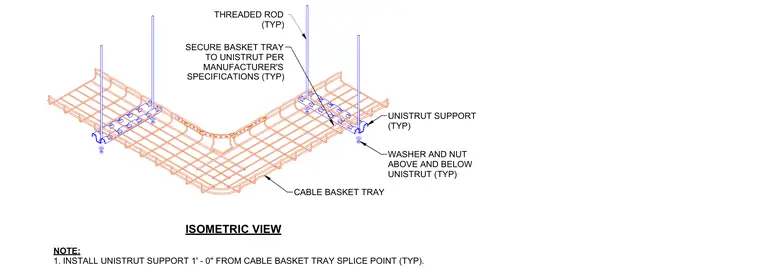

UNISTRUT SUPPORT (TYP) THREADED ROD (TYP) WASHER AND NUT ABOVE AND BELOW UNISTRUT (TYP) SECURE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS (TYP) ISOMETRIC VIEW 1. NOTE: INSTALL UNISTRUT SUPPORT 1' - 0" FROM CABLE BASKET TRAY SPLICE POINT (TYP). CABLE BASKET TRAY
