Typical Grounding and Bonding Detail

Materials

Concrete Reinforced Concrete Steel Metal (misc.)

Elements

Foundations / Footings Entrances Connections / Plates Reinforcing

About this detail

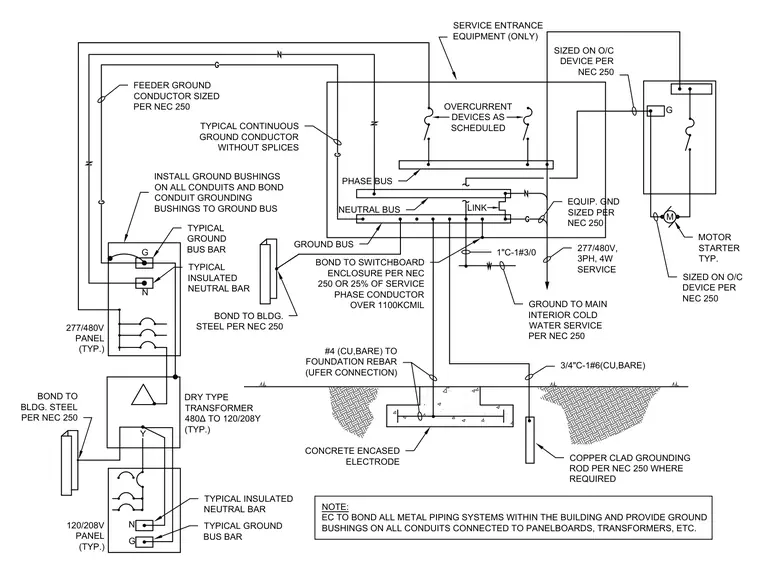

Typical grounding and bonding connections for service entrance equipment, dry-type transformers, and panelboards per NEC 250 requirements. Phase bus, neutral bar, and ground bus arrangements within switchboards, along with equipment ground conductors sized according to overcurrent devices. A concrete encased electrode Ufer connection utilizes a bare copper wire connected to foundation rebar, while supplemental grounding includes copper-clad grounding rods and cold water pipe bonding. Ground bushings are required on all conduits terminating at panelboards and transformers, with continuous grounding conductors routed without splices.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
