Electrical · E-9CKNW

Light Pole Base Detail

Materials

Concrete Reinforced Concrete Steel

Elements

Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Bolted Connection

About this detail

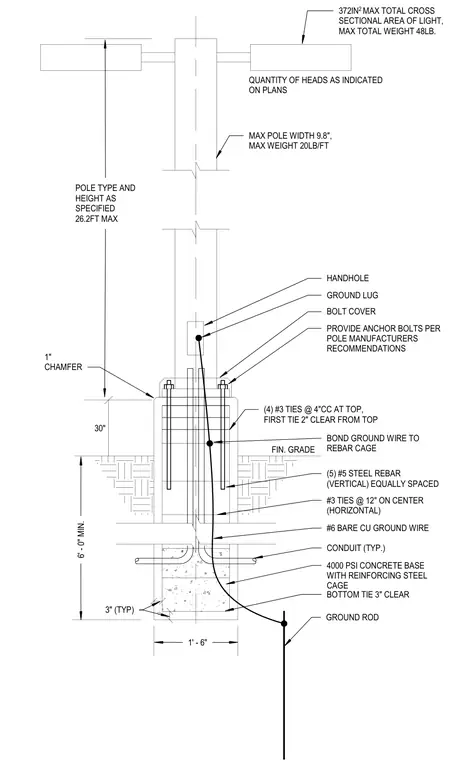

A light pole base assembly consists of a four-thousand PSI reinforced concrete base and anchor bolts installed per the pole manufacturer's recommendations. The concrete pier is finished with a one-inch chamfer at the top and extends six feet minimum below finished grade. Reinforcement includes five vertical number five steel rebars equally spaced, horizontal number three ties at twelve inches on center, and four number three ties at four inches on center at the top. Electrical provisions feature a conduit sweep entering the base, a ground rod connected via a number six bare copper ground wire, and a ground lug bonded to the rebar cage. The light pole sits atop a bolt cover and includes limitations for a maximum pole width of 9.8 inches, maximum weight of 20 pounds per foot, and a maximum total cross-sectional area of 372 square inches with a maximum weight of 48 pounds for the light head.
