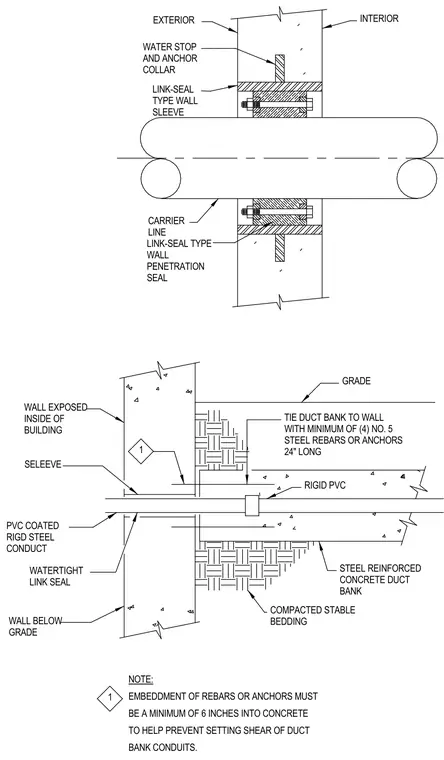

A carrier line or PVC coated rigid steel conduit passes through a below-grade reinforced concrete wall using a Link-Seal type wall sleeve with a central water stop and anchor collar. A watertight Link-Seal wall penetration seal is compressed around the carrier line inside the sleeve. A steel reinforced concrete duct bank connects to the exterior wall face over compacted stable bedding and is tied to the wall with at least four twenty-four-inch long number 5 steel rebars or anchors. These rebars require a minimum embedment of six inches into the concrete to help prevent shear settlement of the duct bank conduits.
INTERIOR EXTERIOR WATER STOP AND ANCHOR COLLAR LINK-SEAL TYPE WALL SLEEVE CARRIER LINE LINK-SEAL TYPE WALL PENETRATION SEAL GRADE TIE DUCT BANK TO WALL WITH MINIMUM OF (4) NO. 5 STEEL REBARS OR ANCHORS 24" LONG RIGID PVC STEEL REINFORCED CONCRETE DUCT BANK COMPACTED STABLE BEDDING WALL EXPOSED INSIDE OF BUILDING SELEEVE PVC COATED RIGD STEEL CONDUCT WATERTIGHT LINK SEAL WALL BELOW GRADE NOTE: EMBEDDMENT OF REBARS OR ANCHORS MUST BE A MINIMUM OF 6 INCHES INTO CONCRETE TO HELP PREVENT SETTING SHEAR OF DUCT BANK CONDUITS. 1 1
