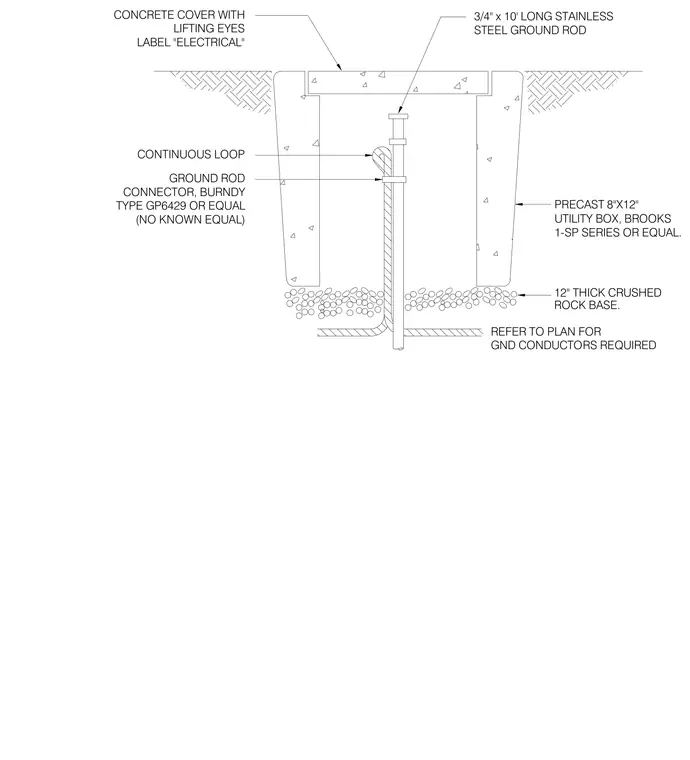

A three-quarter inch by ten foot long stainless steel ground rod is driven into the earth inside a precast utility box. The precast box rests on a twelve inch thick crushed rock base and is topped with a concrete cover featuring lifting eyes and labeled electrical. A continuous ground conductor loop connects to the ground rod using a Burndy type GP6429 connector or approved equal with no known equal. Ground conductors required are sized per the electrical plan.
GROUND ROD CONTINUOUS LOOP LABEL "ELECTRICAL" LIFTING EYES CONCRETE COVER WITH TYPE GP6429 OR EQUAL CONNECTOR, BURNDY (NO KNOWN EQUAL) PRECAST 8"X12" 1-SP SERIES OR EQUAL. UTILITY BOX, BROOKS 12" THICK CRUSHED REFER TO PLAN FOR GND CONDUCTORS REQUIRED ROCK BASE. 3/4" x 10' LONG STAINLESS STEEL GROUND ROD
