Telecommunications · E-98BPD

Data Device Ceiling and Structure Mounting Details

Materials

Steel

Elements

Roofs Ceilings Decks Connections / Plates Reinforcing

Connections

Rebar Splice / Development

About this detail

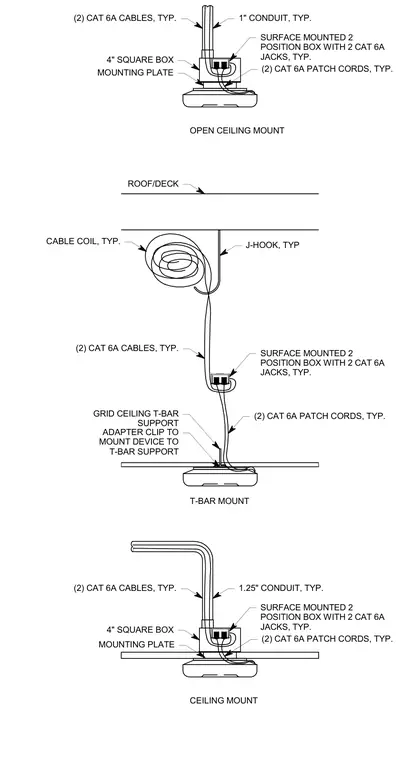

These details show data device mounting methods for open ceiling, T-bar grid ceiling, and ceiling-mounted conditions. The open ceiling mount utilizes a 1-inch conduit feeding two Category 6A cables into a surface-mounted two-position box with two Category 6A jacks, mounted on a 4-inch square box and mounting plate with two Category 6A patch cords. The T-bar mount suspends from the roof or deck via a J-hook with a typical cable coil, dropping two Category 6A cables down to a surface-mounted two-position box attached to a grid ceiling T-bar support using an adapter clip and two Category 6A patch cords. The standard ceiling mount routes two Category 6A cables through a 1.25-inch conduit into a surface-mounted two-position box with two Category 6A jacks and two Category 6A patch cords on a 4-inch square box and mounting plate.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
