Lighting Control Wiring Diagram

About this detail

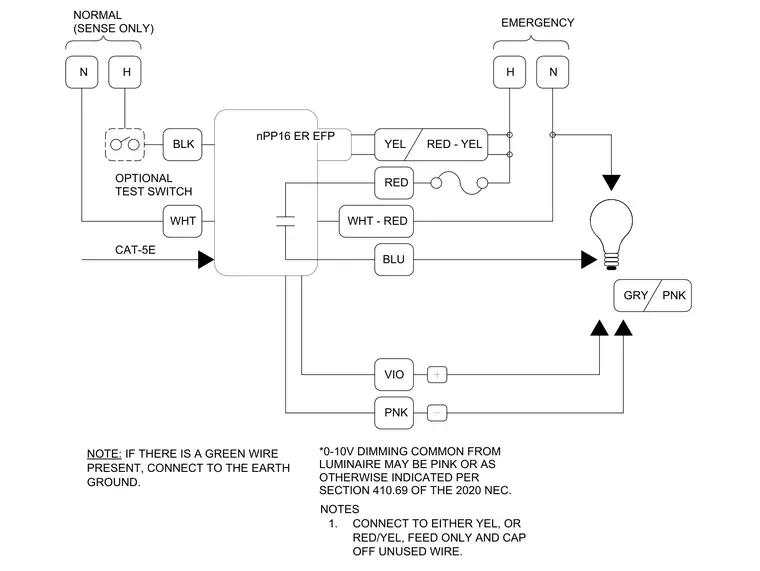

An electrical wiring diagram establishes the connection scheme for an nPP16 ER EFP lighting control power pack. The unit receives normal sense-only power feeds, an optional test switch, an emergency power feed, and a CAT-5E data connection. Output leads route power and control signals to the luminaire, including 0-10V dimming wires in violet and pink or grey. Unused feed wires must be capped off per project notes, and any green ground wire must connect to earth ground.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
