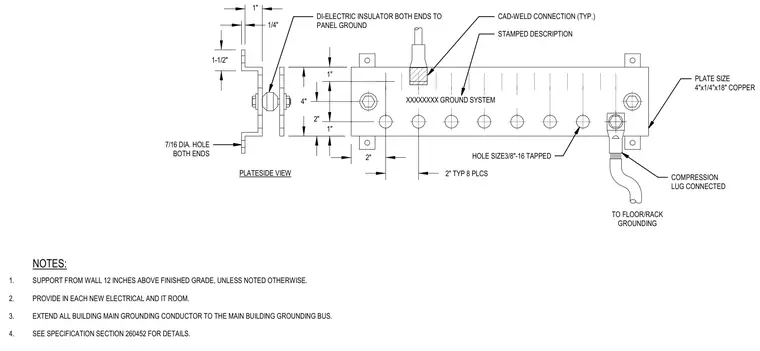

A copper grounding bus plate measuring 4 inches by 1/4 inch by 18 inches is mounted with dielectric insulators on both ends to isolate the panel ground. Eight tapped 3/8-inch-16 holes spaced 2 inches apart receive mechanical connections. A compression lug connects the grounding conductor to the bus bar, while a CAD-weld connection ties into the system. The assembly is supported from the wall 12 inches above the finished grade in electrical and IT rooms.
NOTES: 1-1/2" PLATESIDE VIEW 1" 1" 4" 2" 2" 1/4" 1" 2" TYP 8 PLCS HOLE SIZE3/8"-16 TAPPED STAMPED DESCRIPTION XXXXXXXX GROUND SYSTEM TO FLOOR/RACK GROUNDING CAD-WELD CONNECTION (TYP.) DI-ELECTRIC INSULATOR BOTH ENDS TO PANEL GROUND COMPRESSION LUG CONNECTED PLATE SIZE 4"x1/4"x18" COPPER 7/16 DIA. HOLE BOTH ENDS 1. SUPPORT FROM WALL 12 INCHES ABOVE FINISHED GRADE, UNLESS NOTED OTHERWISE. 2. PROVIDE IN EACH NEW ELECTRICAL AND IT ROOM. 3. EXTEND ALL BUILDING MAIN GROUNDING CONDUCTOR TO THE MAIN BUILDING GROUNDING BUS. 4. SEE SPECIFICATION SECTION 260452 FOR DETAILS.
