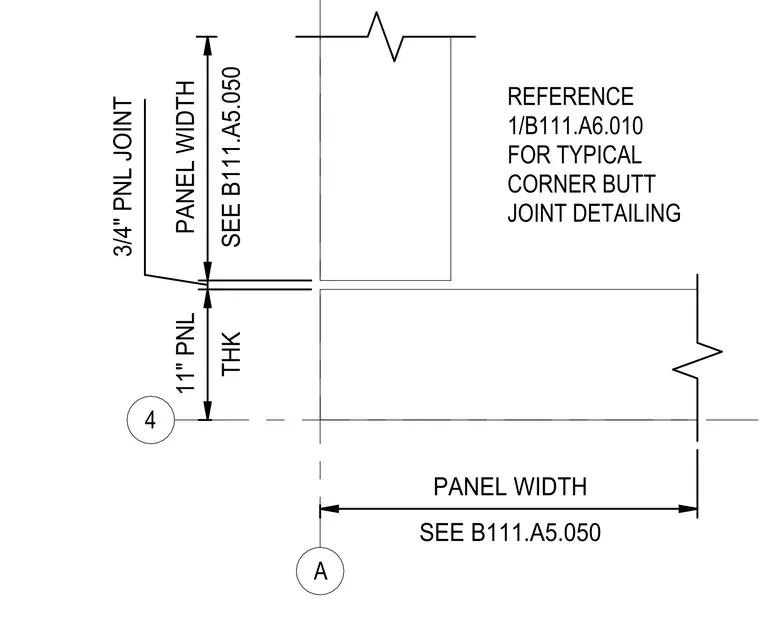

This detail defines the corner configuration for eleven-inch thick precast panels with a three-quarter-inch panel joint. The panel width is determined by reference to drawing B111.A5.050. A reference note directs the user to detail 1/B111.A6.010 for typical corner butt joint detailing.
