A two- or three-ply laminated plastic identification plate measures six inches wide by two inches high with a thickness of one-quarter inch. Four seven-thirty-seconds-inch holes are positioned at the corners for mounting. One-inch high engraved letters indicate the feeder identification and phase designation. The plate is secured to a fifteen-kilovolt cable using two weather-resistant nylon six-six cable ties with a body width of zero point one eight four inches.

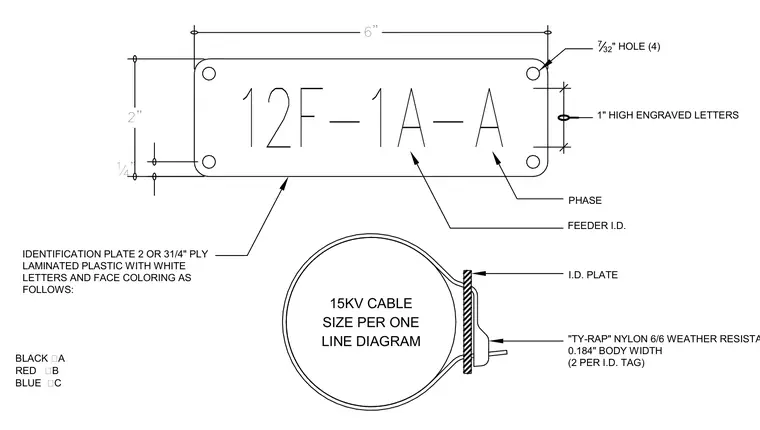

1/4 " 2" 6" I.D. PLATE 15KV CABLE SIZE PER ONE LINE DIAGRAM PHASE BLACK ∅A RED ∅B BLUE ∅C FEEDER I.D. 1" HIGH ENGRAVED LETTERS 732 " HOLE (4) 12F-1A-A "TY-RAP" NYLON 6/6 WEATHER RESISTANT 0.184" BODY WIDTH (2 PER I.D. TAG) IDENTIFICATION PLATE 2 OR 31/4" PLY LAMINATED PLASTIC WITH WHITE LETTERS AND FACE COLORING AS FOLLOWS:
