A sixteen-foot luminaire pole mounts to a cast-in-place concrete base anchored by embedded bolts and surrounded by a one-inch chamfered edge at finished grade. The twenty-four-inch diameter minimum and four-foot minimum depth concrete foundation is reinforced with four number-four vertical rebar and number-three ties at twelve inches on center with three inches of minimum cover. Branch circuit conductors run within one-and-one-quarter-inch conduit inside the concrete base. A number-six American Wire Gauge bare copper ground cable runs in one-inch conduit within the concrete base and bonds to the pole, anchor bolts, and equipment ground conductor via a bronze clamp ground connection to a five-eighths-inch diameter by eight-foot long copperweld ground rod set twelve inches below finished grade. A rated ten-inch round pull box with cover connects via one-inch conduit with a two-inch by one-and-one-quarter-inch reducer coupling. Voids between the top of the concrete base and the bottom of the transformer base are solidly grouted with non-shrink grout featuring a drainage channel, while a hand hole with cover utilizes tamper-resistant stainless steel hardware.

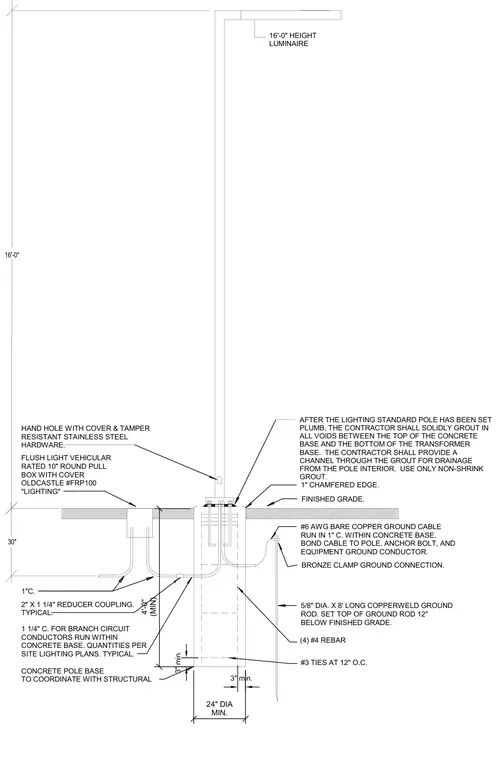

30" 16'-0" HEIGHT LUMINAIRE FLUSH LIGHT VEHICULAR HAND HOLE WITH COVER & TAMPER RESISTANT STAINLESS STEEL HARDWARE. 16'-0" 1 1/4" C. FOR BRANCH CIRCUIT CONDUCTORS RUN WITHIN CONCRETE BASE. QUANTITIES PER SITE LIGHTING PLANS. TYPICAL. #6 AWG BARE COPPER GROUND CABLE RUN IN 1" C. WITHIN CONCRETE BASE. BOND CABLE TO POLE, ANCHOR BOLT, AND EQUIPMENT GROUND CONDUCTOR. FINISHED GRADE. BRONZE CLAMP GROUND CONNECTION. 5/8" DIA. X 8' LONG COPPERWELD GROUND ROD. SET TOP OF GROUND ROD 12" BELOW FINISHED GRADE. 2" X 1 1/4" REDUCER COUPLING. TYPICAL. 1" CHAMFERED EDGE. RATED 10" ROUND PULL BOX WITH COVER OLDCASTLE #FRP100 "LIGHTING" CONCRETE POLE BASE TO COORDINATE WITH STRUCTURAL 1"C. AFTER THE LIGHTING STANDARD POLE HAS BEEN SET PLUMB, THE CONTRACTOR SHALL SOLIDLY GROUT IN ALL VOIDS BETWEEN THE TOP OF THE CONCRETE BASE AND THE BOTTOM OF THE TRANSFORMER BASE. THE CONTRACTOR SHALL PROVIDE A CHANNEL THROUGH THE GROUT FOR DRAINAGE FROM THE POLE INTERIOR. USE ONLY NON-SHRINK GROUT. (4) #4 REBAR #3 TIES AT 12" O.C. 24" DIA MIN. 4'-0" (MIN) 3" min. 3" min.
