A video surveillance camera is mounted to a building wall with a four-inch square box connected via a three-quarter-inch flexible conduit. Three-quarter-inch conduit and data cabling route upward to the nearest data room or cable tray. The installation requires CAT 6A cable and a CommScope CAT 6A U/UTP plenum cord with an RJ45 to ceiling connector, part number CCA-CAT6A-BK-2FT.

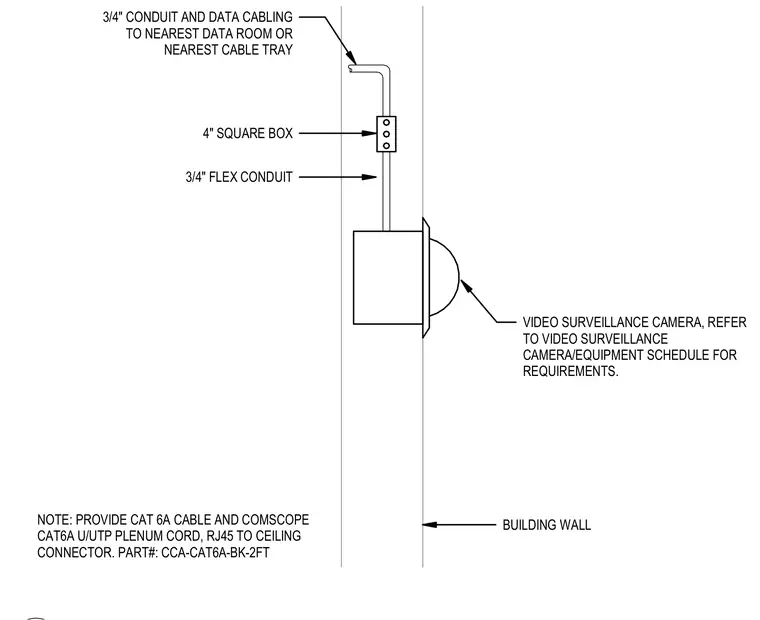

BUILDING WALL VIDEO SURVEILLANCE CAMERA, REFER TO VIDEO SURVEILLANCE CAMERA/EQUIPMENT SCHEDULE FOR REQUIREMENTS. 4" SQUARE BOX 3/4" FLEX CONDUIT 3/4" CONDUIT AND DATA CABLING TO NEAREST DATA ROOM OR NEAREST CABLE TRAY NOTE: PROVIDE CAT 6A CABLE AND COMSCOPE CAT6A U/UTP PLENUM CORD, RJ45 TO CEILING CONNECTOR. PART#: CCA-CAT6A-BK-2FT
