Motor Control Circuit Schematic

Elements

About this detail

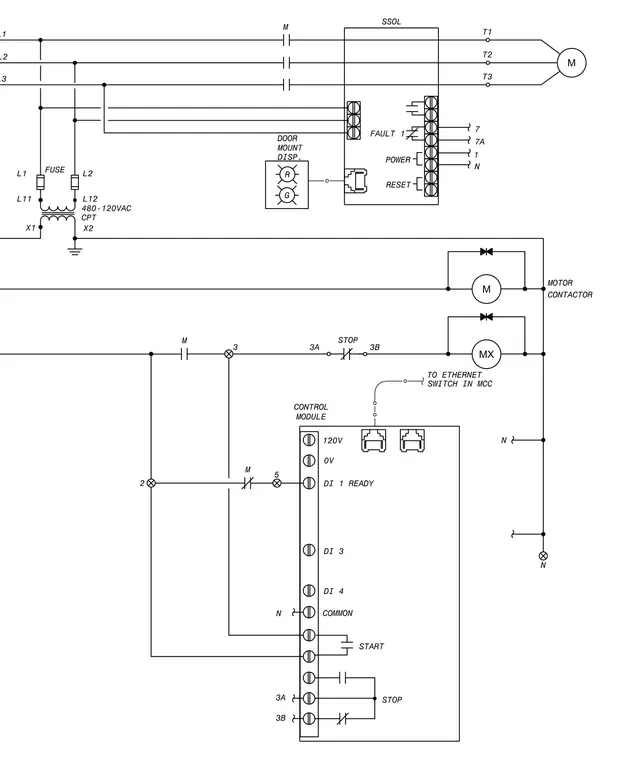

An electrical schematic shows the control and power wiring for a solid-state motor starter connected to a motor. Power is supplied through line fuses and a 480-to-120 volt control power transformer. A solid-state overload unit monitors motor phases T1, T2, and T3, and connects to a door-mounted display unit for fault and power status. A separate control module provides digital inputs for ready status, start and stop pushbuttons, and Ethernet communication back to the motor control center.
