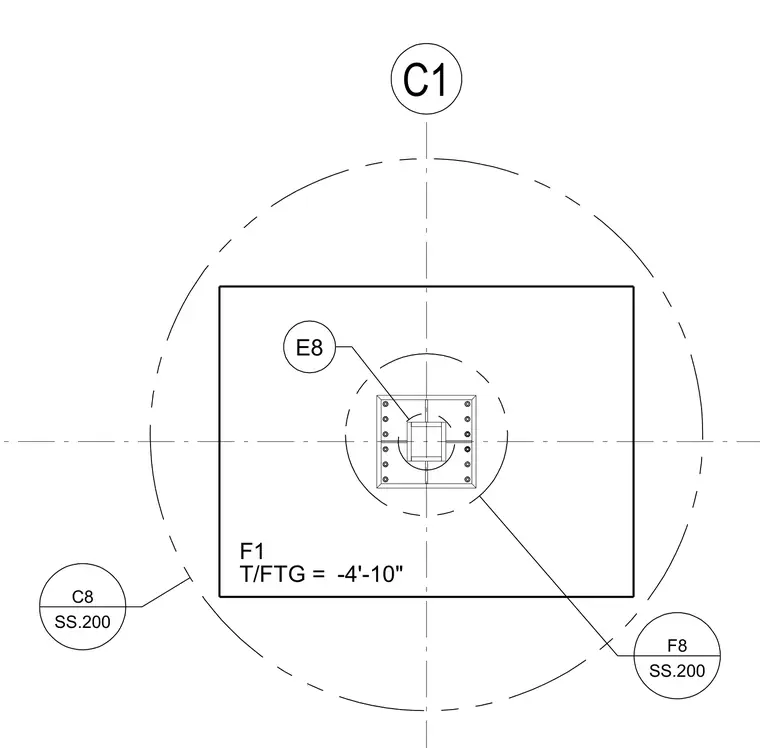

A structural column base plate rests centered on footing F1 at elevation -4'-10". The square base plate features perimeter anchor bolts and stiffener plates surrounding the column shaft. Gridlines and detail reference callouts mark the perimeter and foundation alignment.
