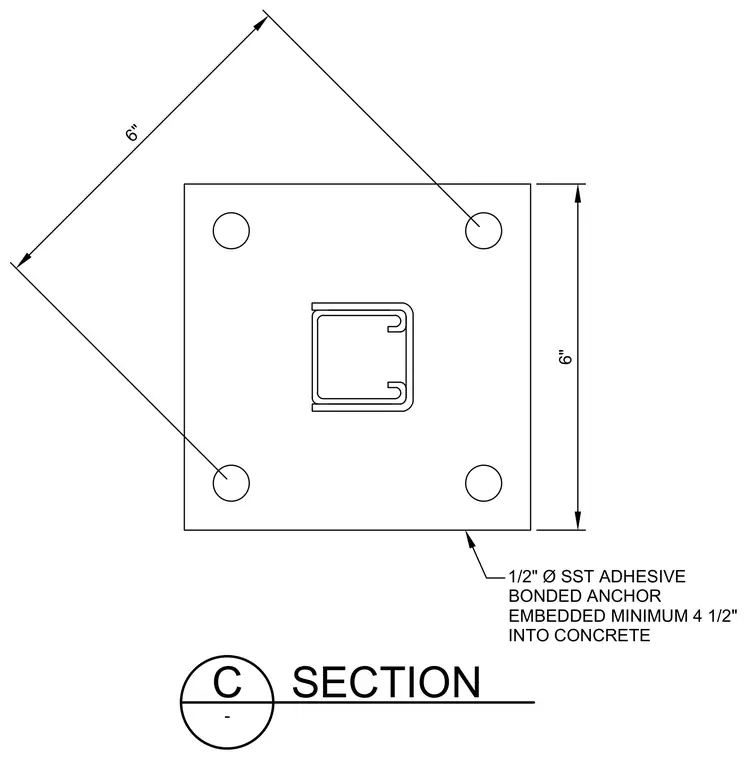

A six-inch by six-inch base plate features four half-inch diameter stainless steel adhesive bonded anchors positioned at the corners. Each anchor extends a minimum of four and one-half inches into the concrete substrate. A central structural shape is welded or connected through the base plate.
C - SECTION 6" 6" 1/2" Ø SST ADHESIVE BONDED ANCHOR EMBEDDED MINIMUM 4 1/2" INTO CONCRETE
