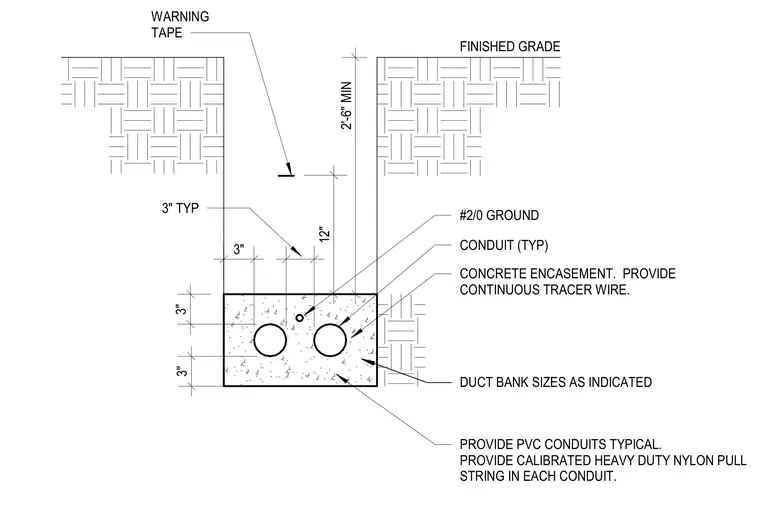

PVC conduits are encased within a rectangular concrete structure buried below finished grade. A continuous tracer wire and a ground wire are integrated into the duct bank configuration. A warning tape is positioned twelve inches above the top of the concrete encasement, maintaining a minimum of two feet six inches of cover below finished grade. Each conduit includes a calibrated heavy duty nylon pull string. Minimum clearances of three inches are maintained around and between conduits within the concrete.
CONDUIT (TYP) FINISHED GRADE CONCRETE ENCASEMENT. PROVIDE CONTINUOUS TRACER WIRE. PROVIDE PVC CONDUITS TYPICAL. PROVIDE CALIBRATED HEAVY DUTY NYLON PULL STRING IN EACH CONDUIT. 3" 3" TYP 3" 3" 12" 2'-6" MIN WARNING TAPE #2/0 GROUND DUCT BANK SIZES AS INDICATED
