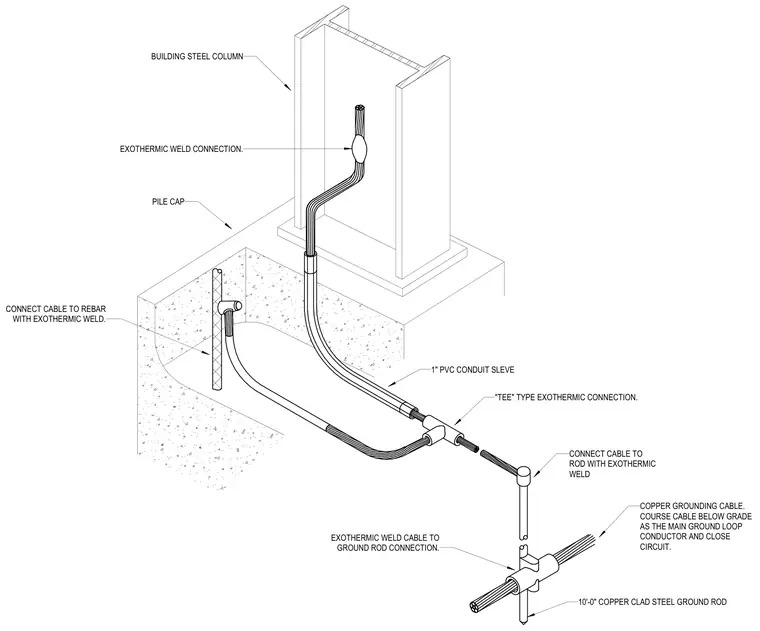

A copper grounding cable connects the building steel column to a ten-foot copper-clad steel ground rod via exothermic weld connections. The grounding cable routes through a one-inch PVC conduit sleeve and ties into the pile cap rebar using an exothermic weld. A T-type exothermic connection ties the cable into the main ground loop conductor below grade to close the grounding circuit.
EXOTHERMIC WELD CONNECTION. BUILDING STEEL COLUMN PILE CAP CONNECT CABLE TO REBAR WITH EXOTHERMIC WELD. 10'-0" COPPER CLAD STEEL GROUND ROD 1" PVC CONDUIT SLEVE CONNECT CABLE TO ROD WITH EXOTHERMIC WELD "TEE" TYPE EXOTHERMIC CONNECTION. COPPER GROUNDING CABLE. COURSE CABLE BELOW GRADE AS THE MAIN GROUND LOOP CONDUCTOR AND CLOSE CIRCUIT. EXOTHERMIC WELD CABLE TO GROUND ROD CONNECTION.
