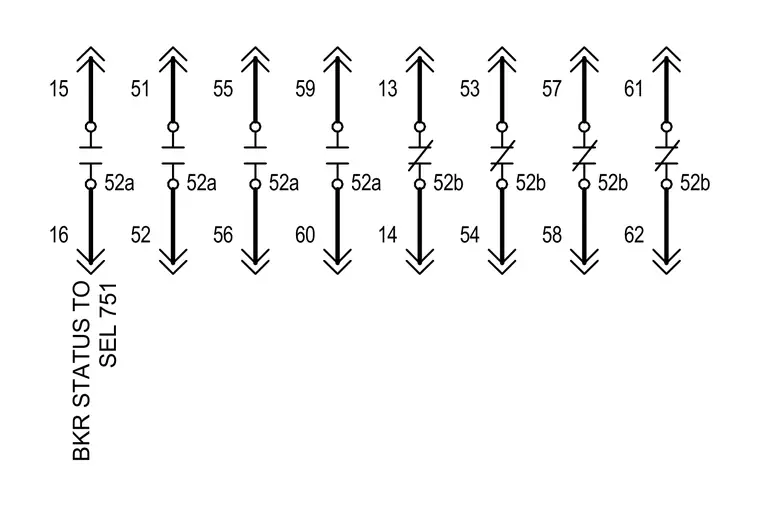

Schematic diagram depicting breaker status input connections for an SEL 751 protective relay utilizing auxiliary contacts 52a and 52b.
BKR STATUS TO SEL 751 15 52a 16 51 52a 52 55 52a 56 59 52a 60 13 14 53 52b 54 57 52b 58 61 52b 62 52b
