Existing concrete wall surfaces are roughened to a one-quarter-inch amplitude to ensure proper bonding. Number four adhesive dowels with standard hooks are installed into the existing concrete. A two-inch minimum embedment depth is maintained unless otherwise noted. Typical clear cover is one and three-quarter inches.

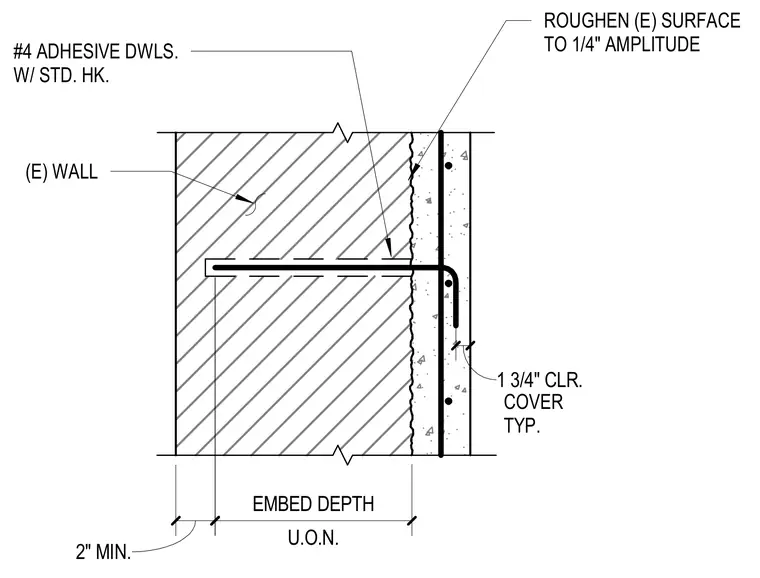

ROUGHEN (E) SURFACE TO 1/4" AMPLITUDE (E) WALL #4 ADHESIVE DWLS. W/ STD. HK. 1 3/4" CLR. U.O.N. EMBED DEPTH 2" MIN. COVER TYP.
