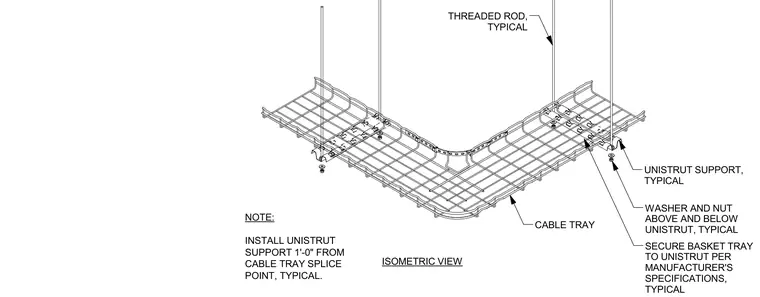

A ninety-degree wire basket cable tray turn is suspended overhead using threaded rods anchored to Unistrut channel supports. Unistrut supports are positioned one foot away from cable tray splice points on both runs. Washers and nuts secure the threaded rods above and below each Unistrut member. The basket tray is fastened directly to the Unistrut according to the manufacturer specifications.
ISOMETRIC VIEW NOTE: INSTALL UNISTRUT SUPPORT 1'-0" FROM CABLE TRAY SPLICE POINT, TYPICAL. UNISTRUT SUPPORT, TYPICAL THREADED ROD, TYPICAL CABLE TRAY WASHER AND NUT ABOVE AND BELOW UNISTRUT, TYPICAL SECURE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS, TYPICAL
