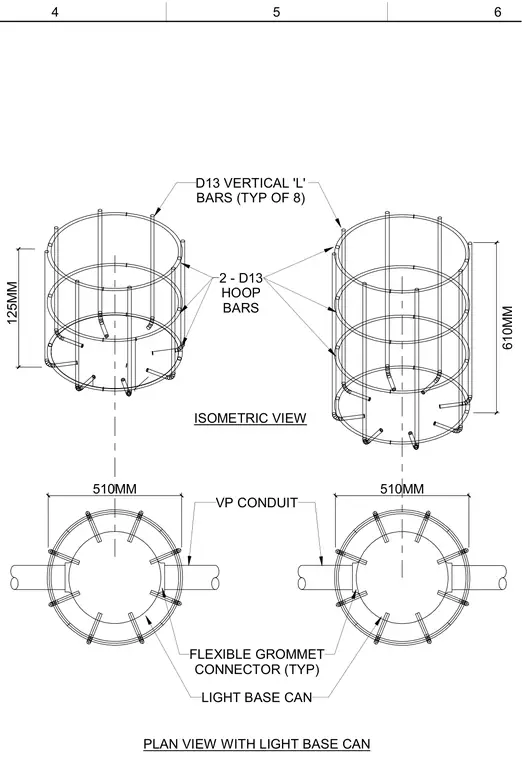

A light base can reinforced concrete assembly featuring eight D13 vertical L-bars and two D13 hoop bars arranged in a circular cage configuration. Conduit enters the light base through flexible grommet connectors spaced around the perimeter. The 510 millimeter diameter light base can is detailed in both plan and isometric views with dimensions ranging from 125 millimeters to 610 millimeters.
LIGHT BASE CAN 510MM 610MM VP CONDUIT PLAN VIEW WITH LIGHT BASE CAN 2 - D13 HOOP BARS D13 VERTICAL 'L' BARS (TYP OF 8) ISOMETRIC VIEW 510MM FLEXIBLE GROMMET CONNECTOR (TYP) 125MM 4 5 6
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
