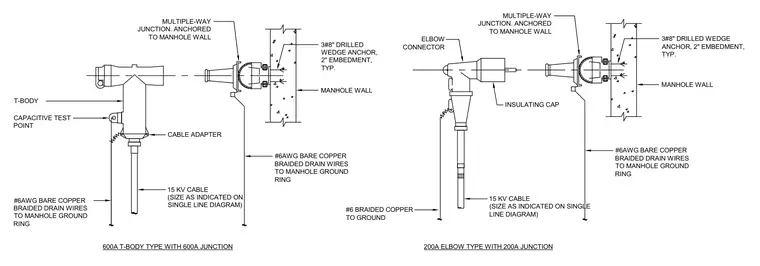

Medium voltage 15kV cables terminate into 600A T-body and 200A elbow separable connectors secured with cable adapters and capacitive test points. Each multiple-way junction is anchored to the concrete manhole wall using three 3/8-inch drilled wedge anchors with a 2-inch embedment. The junction assemblies are grounded with number 6 AWG bare copper braided drain wires running to the manhole ground ring. Insulating caps cover unused ports on the junctions.
600A T-BODY TYPE WITH 600A JUNCTION 200A ELBOW TYPE WITH 200A JUNCTION 3#8" DRILLED WEDGE ANCHOR, 2" EMBEDMENT, TYP. #6AWG BARE COPPER BRAIDED DRAIN WIRES TO MANHOLE GROUND RING #6AWG BARE COPPER BRAIDED DRAIN WIRES TO MANHOLE GROUND RING 3#8" DRILLED WEDGE ANCHOR, 2" EMBEDMENT, TYP. MULTIPLE-WAY JUNCTION. ANCHORED TO MANHOLE WALL MANHOLE WALL ELBOW CONNECTOR #6 BRAIDED COPPER TO GROUND INSULATING CAP 15 KV CABLE (SIZE AS INDICATED ON SINGLE LINE DIAGRAM) CABLE ADAPTER CAPACITIVE TEST POINT T-BODY MANHOLE WALL MULTIPLE-WAY JUNCTION. ANCHORED TO MANHOLE WALL #6AWG BARE COPPER BRAIDED DRAIN WIRES TO MANHOLE GROUND RING 15 KV CABLE (SIZE AS INDICATED ON SINGLE LINE DIAGRAM)
