A vertical cablebus runs continuously through a framed cut-out in a concrete floor slab. Steel supports furnished by the electrical subcontractor bridge the floor opening. Spring hanger assemblies provide vertical support for the cablebus at each floor level throughout the riser. Approved firestopping material fills the annular space around the penetration to maintain fire-rated assemblies. Environmental seal flanges with conductors sealed in RTV silicone sealant provide a watertight and firestop-rated transition.

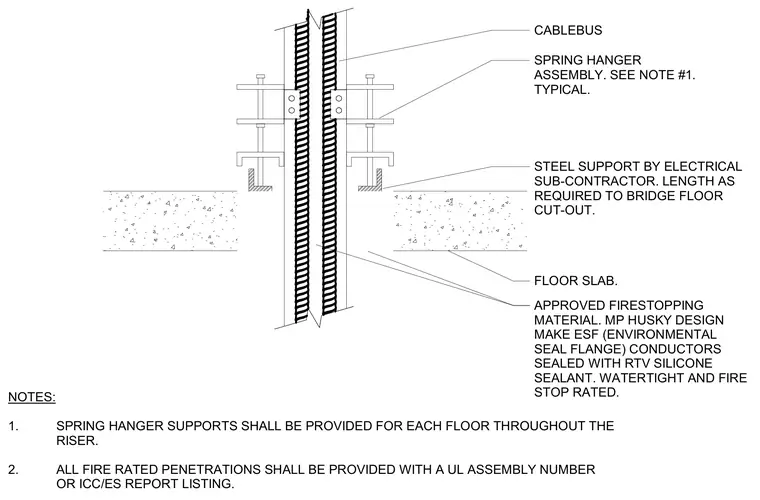

NOTES: 1. SPRING HANGER SUPPORTS SHALL BE PROVIDED FOR EACH FLOOR THROUGHOUT THE RISER. 2. ALL FIRE RATED PENETRATIONS SHALL BE PROVIDED WITH A UL ASSEMBLY NUMBER OR ICC/ES REPORT LISTING. SPRING HANGER ASSEMBLY. SEE NOTE #1. TYPICAL. STEEL SUPPORT BY ELECTRICAL SUB-CONTRACTOR. LENGTH AS REQUIRED TO BRIDGE FLOOR CUT-OUT. FLOOR SLAB. APPROVED FIRESTOPPING MATERIAL. MP HUSKY DESIGN MAKE ESF (ENVIRONMENTAL SEAL FLANGE) CONDUCTORS SEALED WITH RTV SILICONE SEALANT. WATERTIGHT AND FIRE STOP RATED. CABLEBUS
