Electrical Motor Control and VFD One-Line Diagram

About this detail

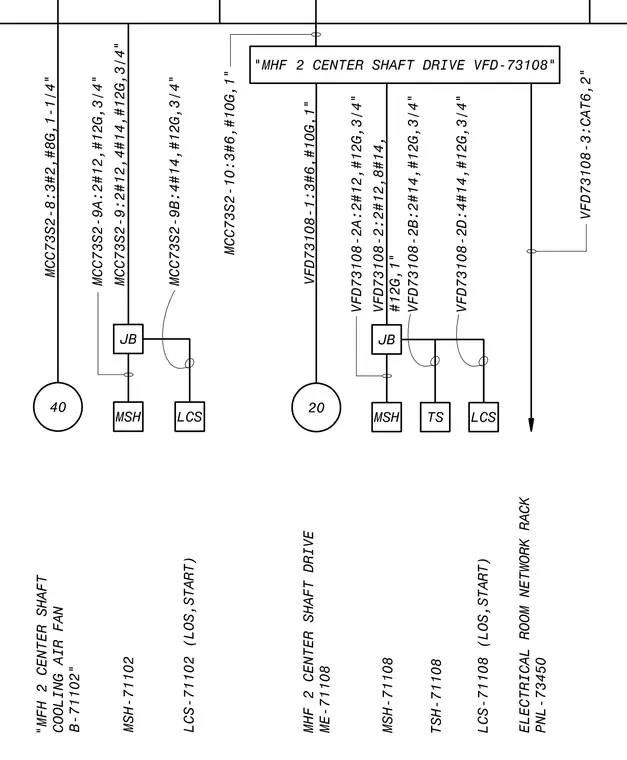

This electrical one-line diagram details power and control connections for the center shaft cooling air fan and center shaft drive units. Feeds originate from motor control centers and distribution panels, routed through junction boxes, motor safety switches, and local control stations with line-of-sight start capabilities. Conductor sizes, wire gauges, conduit diameters, and data lines such as CAT6 are explicitly specified for each control and power run.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
