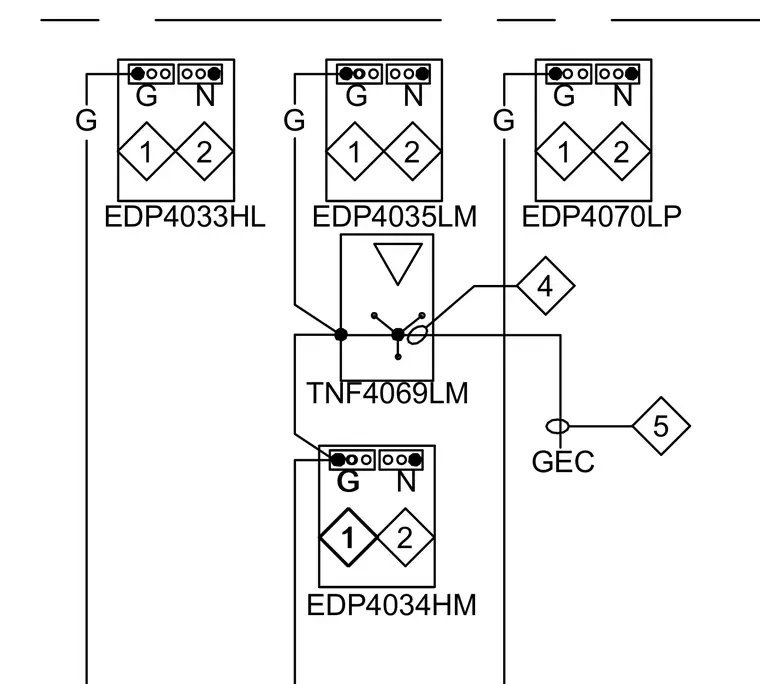

This electrical schematic details the connections between electrical distribution panels EDP4033HL, EDP4035LM, EDP4034HM, and EDP4070LP linked with ground and neutral conductors. Panel TNF4069LM is integrated into the layout with a grounding electrode conductor (GEC) connection and numbered reference tags.
N G 1 2 EDP4033HL TNF4069LM N 1 2 G EDP4035LM EDP4034HM N G 1 2 G 1 N G 1 2 EDP4070LP GEC G G G 5 4
