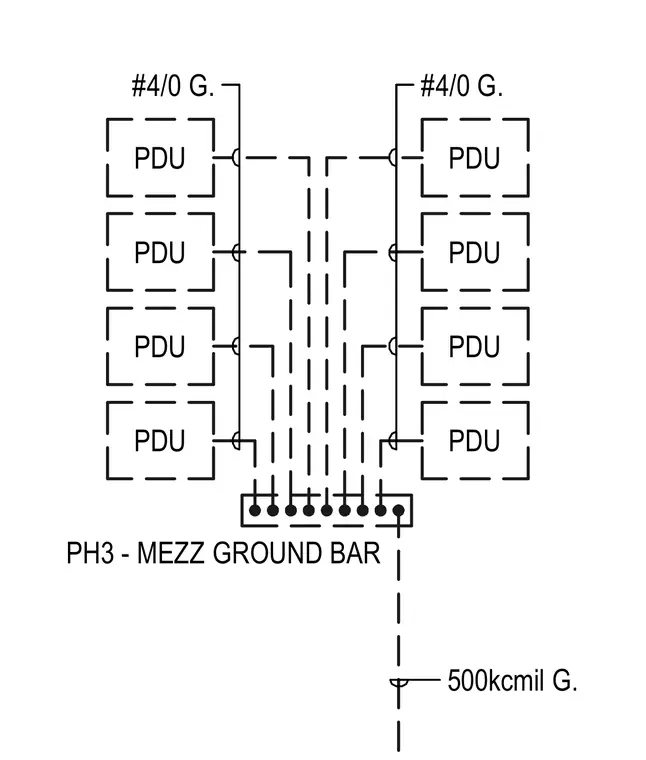

The phase three mezzanine ground bar connects to multiple power distribution units using number four-aught grounding conductors. A main five-hundred kcmil grounding conductor ties into the ground bar from the electrical distribution system.
PDU PDU PDU PDU PDU PDU PDU PDU PH3 - MEZZ GROUND BAR #4/0 G. #4/0 G. 500kcmil G.
