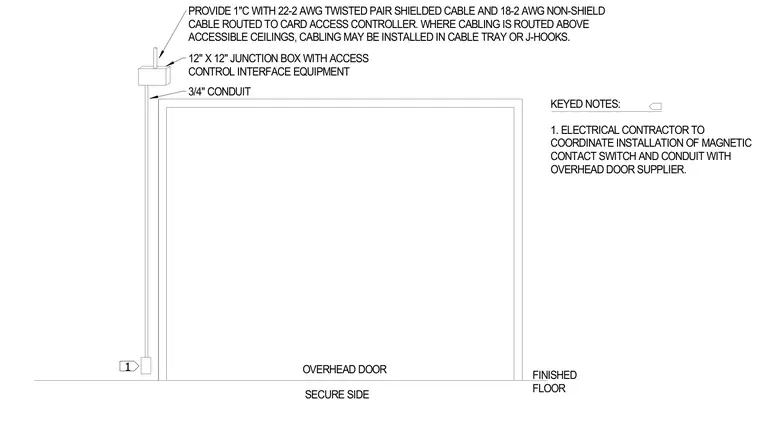

An overhead door monitoring assembly connects a magnetic contact switch to a card access controller via a three-quarter-inch conduit and a twelve-by-twelve-inch junction box with access control interface equipment. One-inch conduit contains a twenty-two gauge two-conductor twisted pair shielded cable and an eighteen gauge two-conductor non-shielded cable routed to the controller. Cabling routed above accessible ceilings may be installed in cable trays or J-hooks. The electrical contractor coordinates the installation of the magnetic contact switch and conduit with the overhead door supplier.
3/4" CONDUIT FINISHED FLOOR OVERHEAD DOOR PROVIDE 1"C WITH 22-2 AWG TWISTED PAIR SHIELDED CABLE AND 18-2 AWG NON-SHIELD CABLE ROUTED TO CARD ACCESS CONTROLLER. WHERE CABLING IS ROUTED ABOVE ACCESSIBLE CEILINGS, CABLING MAY BE INSTALLED IN CABLE TRAY OR J-HOOKS. 12" X 12" JUNCTION BOX WITH ACCESS CONTROL INTERFACE EQUIPMENT KEYED NOTES: 1. ELECTRICAL CONTRACTOR TO COORDINATE INSTALLATION OF MAGNETIC CONTACT SWITCH AND CONDUIT WITH OVERHEAD DOOR SUPPLIER. SECURE SIDE 1
