A recessed can light fixture installs directly into a lay-in tile ceiling and utilizes a fixture mounting bracket supported by number twelve steel wire secured to the structure above. The fixture centers within the ceiling tile and requires coordination with adjacent mechanical ductwork and equipment.

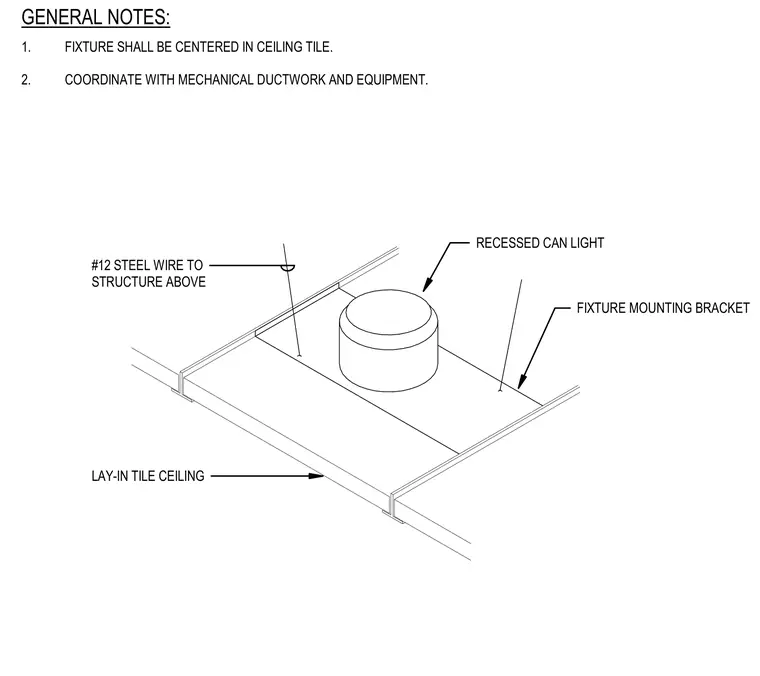

FIXTURE MOUNTING BRACKET LAY-IN TILE CEILING RECESSED CAN LIGHT #12 STEEL WIRE TO STRUCTURE ABOVE GENERAL NOTES: 1. FIXTURE SHALL BE CENTERED IN CEILING TILE. 2. COORDINATE WITH MECHANICAL DUCTWORK AND EQUIPMENT.
