Electrical · E-88DCN

Pullbox

Elements

About this detail

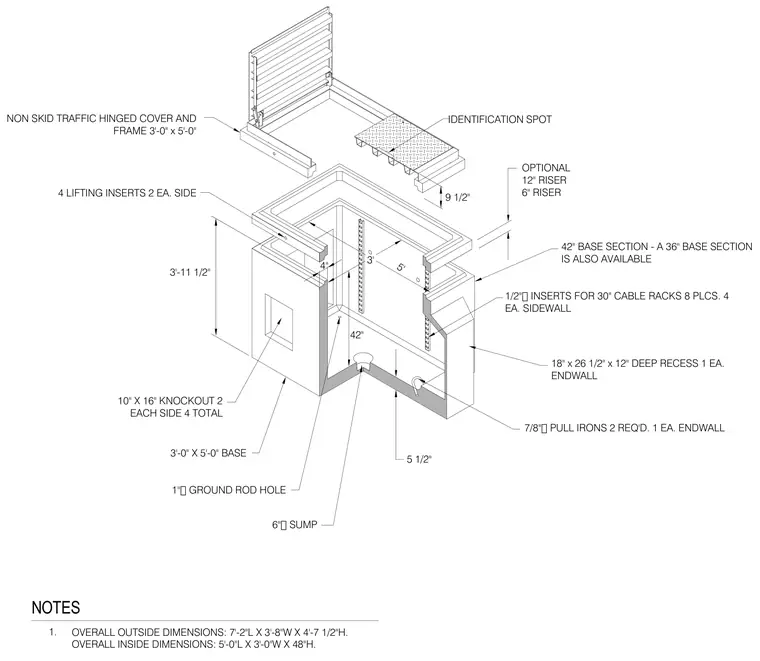

A precast concrete pullbox measuring five feet long by three feet wide with an interior height of forty-eight inches, featuring overall outside dimensions of seven feet two inches long by three feet eight inches wide by four feet seven and one-half inches high. The assembly includes a three-foot by five-foot non-skid traffic hinged cover and frame, four lifting inserts with two on each side, a six-inch diameter sump, and a one-inch diameter ground rod hole. Optional six-inch and twelve-inch risers are available above a forty-two-inch base section, alongside an alternative thirty-six-inch base section. The interior walls feature eight one-half-inch diameter inserts for thirty-inch cable racks with four on each sidewall, two seven-eighths-inch diameter pull irons with one required on each endwall, and four ten-inch by sixteen-inch knockouts with two on each side. Each endwall also contains an eighteen-inch by twenty-six and one-half-inch by twelve-inch deep recess.
