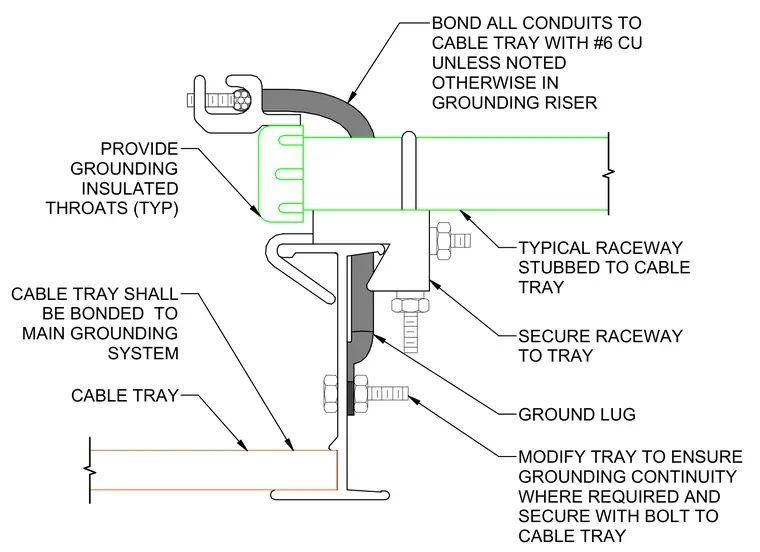

A typical raceway stubs to the cable tray and is secured with a bolted connection. Grounding insulated throats are provided at the termination. A ground lug is attached to the raceway and bonded to the cable tray with a number six copper conductor unless noted otherwise in the grounding riser. The cable tray is modified to ensure grounding continuity where required and secured with a bolt, and the cable tray must be bonded to the main grounding system.
PROVIDE GROUNDING INSULATED THROATS (TYP) CABLE TRAY TYPICAL RACEWAY STUBBED TO CABLE TRAY SECURE RACEWAY TO TRAY MODIFY TRAY TO ENSURE GROUNDING CONTINUITY WHERE REQUIRED AND SECURE WITH BOLT TO CABLE TRAY BOND ALL CONDUITS TO CABLE TRAY WITH #6 CU UNLESS NOTED OTHERWISE IN GROUNDING RISER GROUND LUG CABLE TRAY SHALL BE BONDED TO MAIN GROUNDING SYSTEM
