Scrubber Electrical Single Line Diagram

About this detail

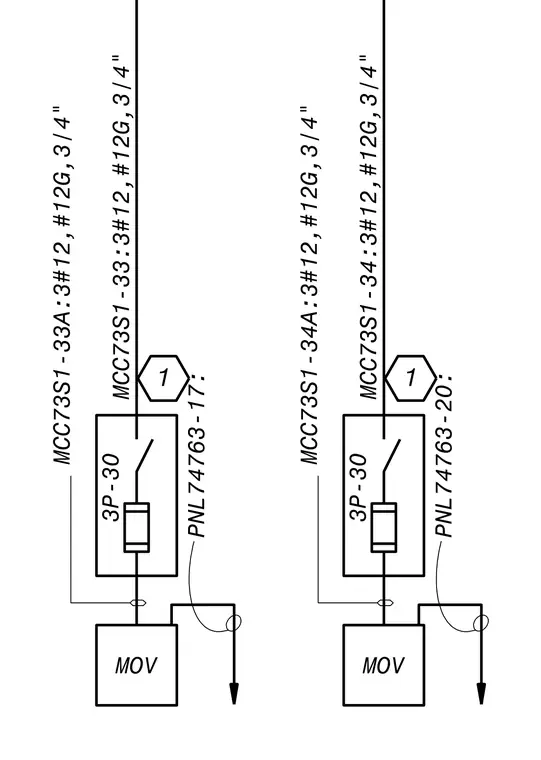

Electrical schematic illustrating the circuit routing for scrubber motor-operated valves. The connections link motor control centers MCC73S1-33 and MCC73S1-34 through three number 12 AWG conductors with a ground wire in a three-quarter-inch conduit to motorized valve units. Circuit breakers rated at three poles and thirty amperes provide protection. Panel feeds connect back to PNL74763-17 and PNL74763-20.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
