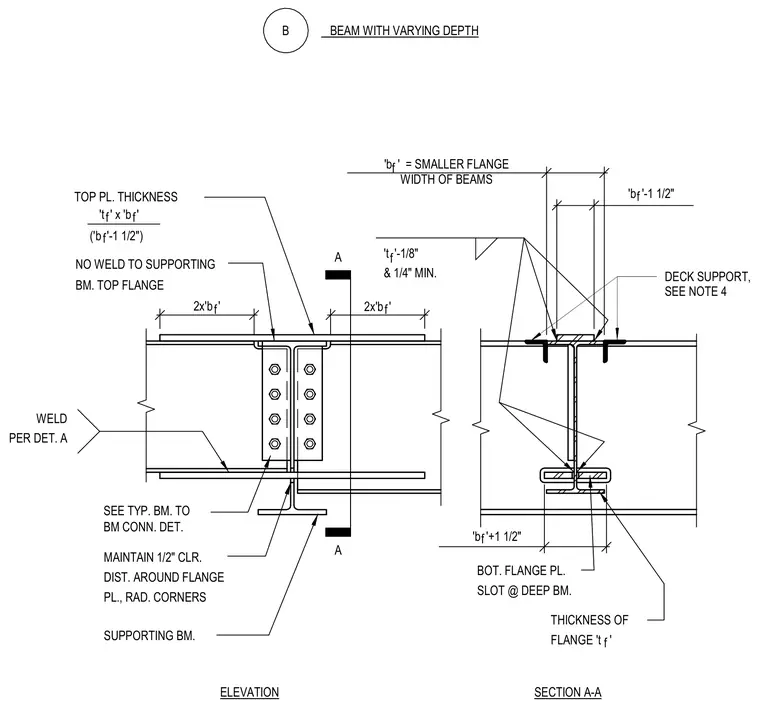

A structural steel beam with varying depth frames into a supporting beam using a bolted shear connection and flange plates. The top plate thickness is defined by the smaller flange width and thickness, with a top plate left unwelded to the supporting beam top flange. A bottom flange plate features a slot at the deep beam and requires a one-half inch clearance distance around the flange plate with rounded corners. Fillet welds are specified per detail A with a minimum thickness based on the flange size. A deck support is provided as noted, maintaining specific dimensional offsets relative to the smaller flange width.
'b ' = SMALLER FLANGE WIDTH OF BEAMS 'b '+1 1/2" 'b '-1 1/2" 2x'b ' 2x'b ' 't '-1/8" & 1/4" MIN. FLANGE 't ' BOT. FLANGE PL. f SLOT @ DEEP BM. THICKNESS OF TOP PL. THICKNESS SEE TYP. BM. TO BM CONN. DET. MAINTAIN 1/2" CLR. PL., RAD. CORNERS DIST. AROUND FLANGE SUPPORTING BM. A A f f f f B BEAM WITH VARYING DEPTH ELEVATION SECTION A-A f f 't ' x 'b ' f ('b '-1 1/2") WELD PER DET. A NO WELD TO SUPPORTING BM. TOP FLANGE f f DECK SUPPORT, SEE NOTE 4
