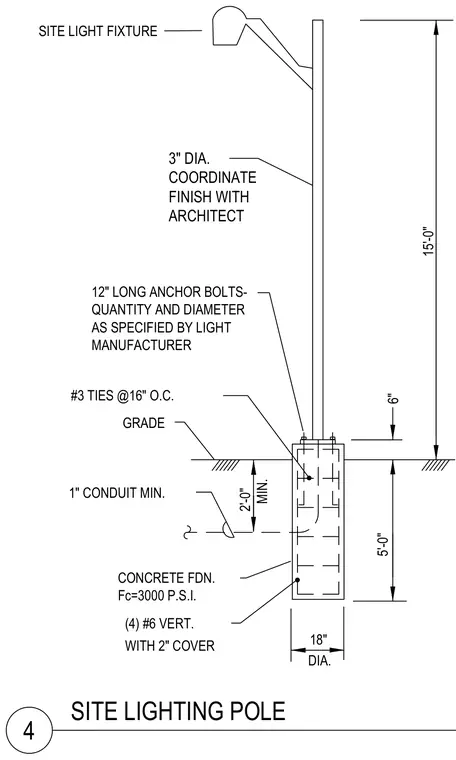

A site lighting pole stands fifteen feet tall with a three-inch diameter shaft and a light fixture at the top. The pole secures to a reinforced concrete foundation via twelve-inch long anchor bolts, sized according to the manufacturer's specifications. The eighteen-inch diameter concrete foundation features a compressive strength of three thousand pounds per square inch and extends five feet below grade with a two-foot minimum bury for the one-inch electrical conduit. Four number six vertical reinforcing bars with two inches of concrete cover run the length of the footing, wrapped by number three ties spaced at sixteen inches on center. The finish coordinate requires verification with the architect.
SITE LIGHTING POLE 4 3" DIA. COORDINATE FINISH WITH ARCHITECT 15'-0" 6" 5'-0" 2'-0" MIN. 1" CONDUIT MIN. #3 TIES @16" O.C. 18" DIA. CONCRETE FDN. Fc=3000 P.S.I. (4) #6 VERT. WITH 2" COVER GRADE 12" LONG ANCHOR BOLTS- QUANTITY AND DIAMETER AS SPECIFIED BY LIGHT MANUFACTURER SITE LIGHT FIXTURE
