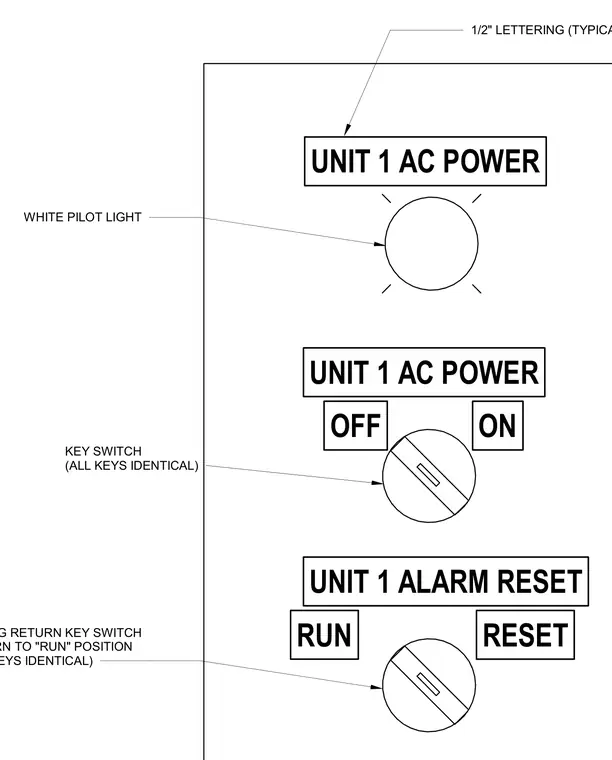

An electrical control panel layout shows a white pilot light with a Unit 1 AC power label and typical half-inch lettering. An AC power key switch features off and on positions with all keys identical. A spring return key switch for Unit 1 alarm reset returns to the run position with identical keys.
UNIT 1 AC POWER UNIT 1 AC POWER RESET UNIT 1 ALARM RESET 1/2" LETTERING (TYPICAL) SPRING RETURN KEY SWITCH RETURN TO "RUN" POSITION (ALL KEYS IDENTICAL) KEY SWITCH (ALL KEYS IDENTICAL) WHITE PILOT LIGHT ON OFF RUN
