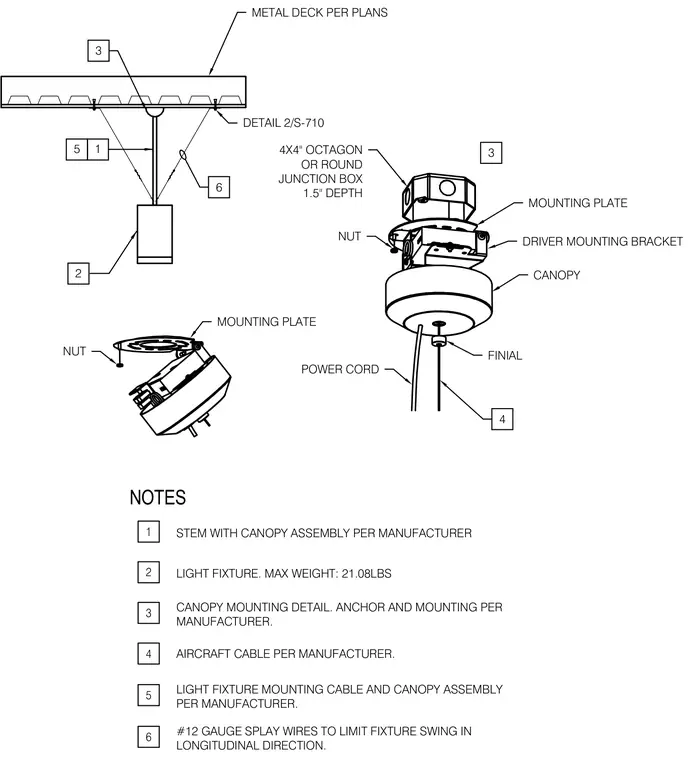

A pendant light fixture suspends from an overhead metal deck with a maximum weight of 21.08 pounds. A four-by-four-inch octagon or round junction box with a 1.5-inch depth attaches to the overhead metal deck, secured with a mounting plate and driver mounting bracket. A canopy covers the junction assembly, held in place by a canopy nut and finished with a finial at the bottom. A power cord and aircraft cable extend down to the light fixture assembly from the manufacturer. Number 12 gauge splay wires anchor to the metal deck and attach to the fixture assembly to limit swing in the longitudinal direction.
2 1 NOTES STEM WITH CANOPY ASSEMBLY PER MANUFACTURER LIGHT FIXTURE. MAX WEIGHT: 21.08LBS CANOPY MOUNTING DETAIL. ANCHOR AND MOUNTING PER MANUFACTURER. AIRCRAFT CABLE PER MANUFACTURER. LIGHT FIXTURE MOUNTING CABLE AND CANOPY ASSEMBLY PER MANUFACTURER. 1 2 3 4 5 5 METAL DECK PER PLANS 4X4" OCTAGON OR ROUND JUNCTION BOX 1.5" DEPTH MOUNTING PLATE DRIVER MOUNTING BRACKET CANOPY NUT FINIAL POWER CORD NUT MOUNTING PLATE 4 3 DETAIL 2/S-710 3 #12 GAUGE SPLAY WIRES TO LIMIT FIXTURE SWING IN LONGITUDINAL DIRECTION. 6 6
