Motor Control Center Control Schematic

About this detail

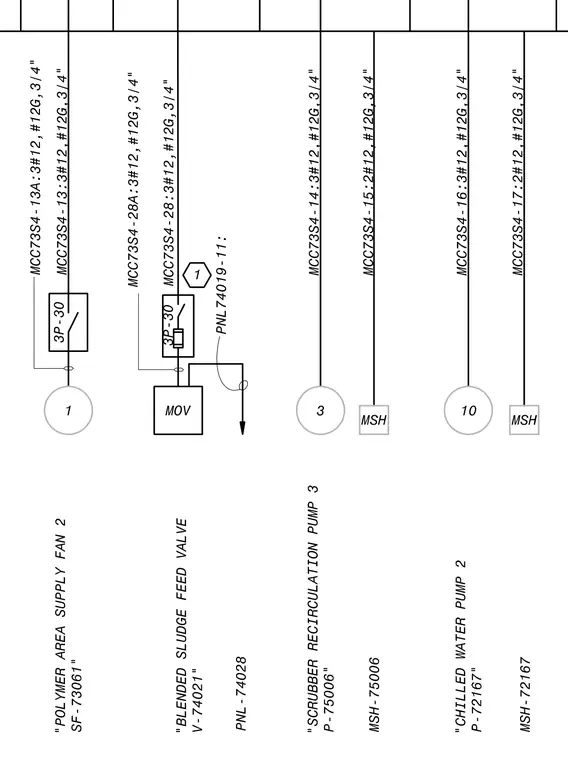

Electrical control diagram detailing motor control center connections for equipment including chilled water pumps, scrubber recirculation pumps, sludge feed valves, and supply fans. The schematic outlines circuit configurations using three number twelve conductors with ground in three-quarter inch conduits connected to specific motor control center locations and panels.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
