Motor Control Center Single Line Diagram and Circuit Riser

About this detail

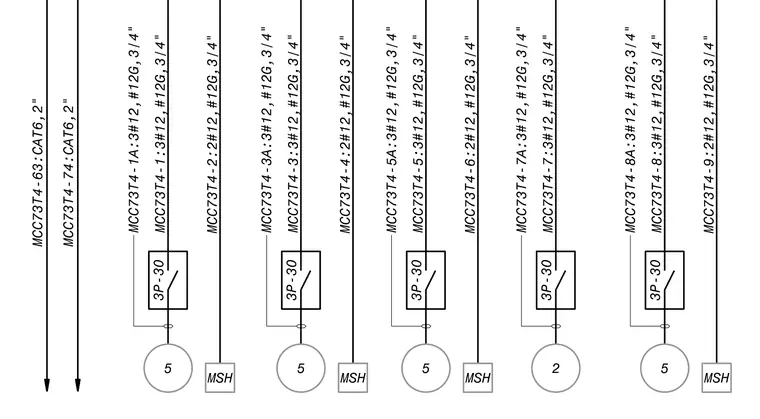

Electrical riser diagram showing motor control center circuit connections with specified conductor sizes including three number twelve wires with a number twelve ground in three-quarter-inch conduit, alongside three-pole thirty-ampere disconnect switches and category six data lines.
