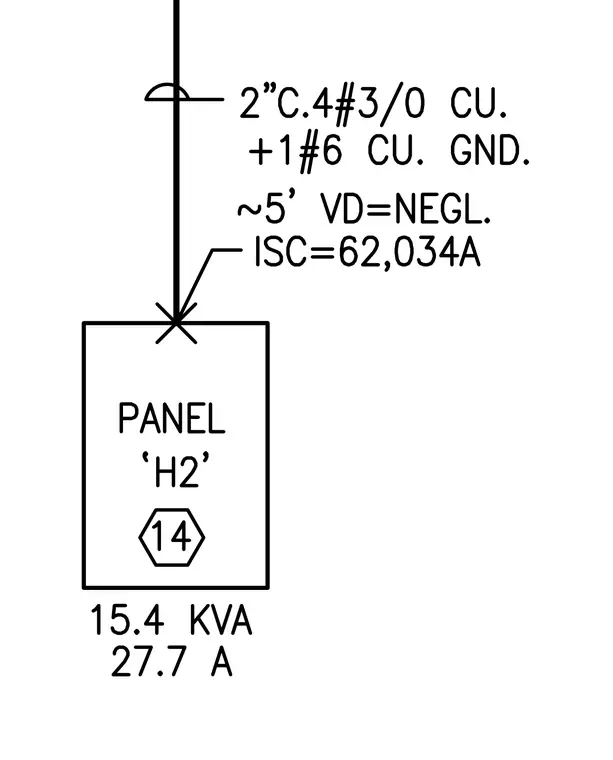

Panel H2 is fed by a 2-inch conduit containing four 3/0 copper conductors and one number 6 copper ground conductor over an approximate length of 5 feet with negligible voltage drop. The available short circuit current at the panel is 62,034 amperes. The connected load is 15.4 kilovolt-amperes drawing 27.7 amperes.
