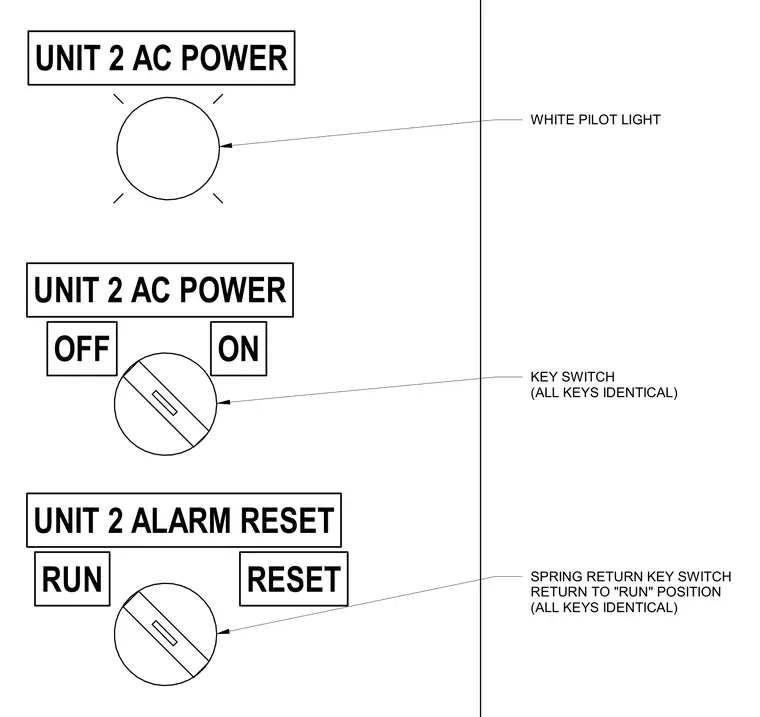

This control layout features a white pilot light indicating Unit 2 AC power status, an on-off key switch with identical keys, and a spring-return key switch for the Unit 2 alarm reset that automatically returns to the run position. All key switches utilize identical keys for standardized access.
UNIT 2 AC POWER UNIT 2 AC POWER UNIT 2 ALARM RESET KEY SWITCH (ALL KEYS IDENTICAL) SPRING RETURN KEY SWITCH RETURN TO "RUN" POSITION (ALL KEYS IDENTICAL) WHITE PILOT LIGHT ON OFF RESET RUN
