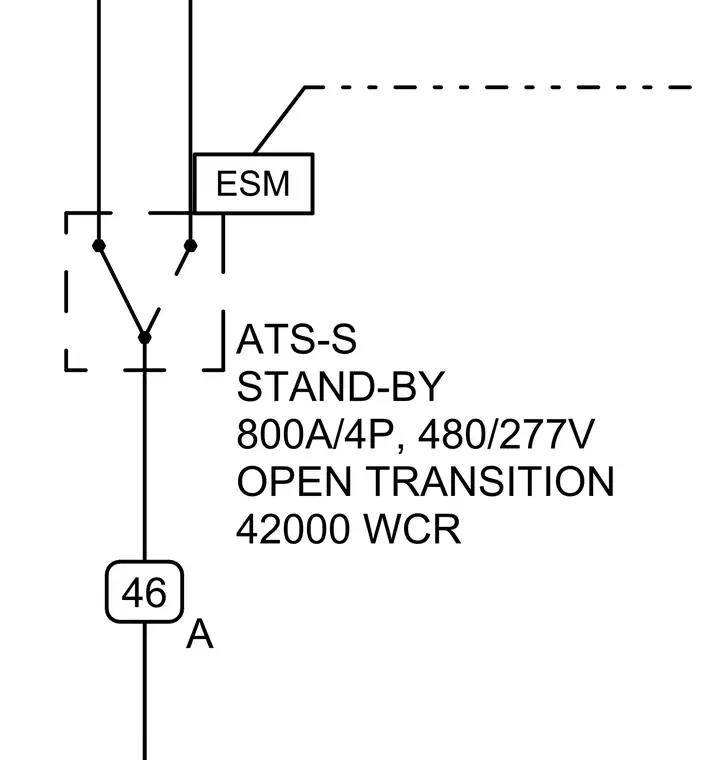

An emergency standby system incorporates an ATS-S designated as an open transition automatic transfer switch rated for 800 amperes across 4 poles at 480/277 volts with a 42,000 withstand current rating. The switching configuration features associated circuit feeds and emergency system labeling.
