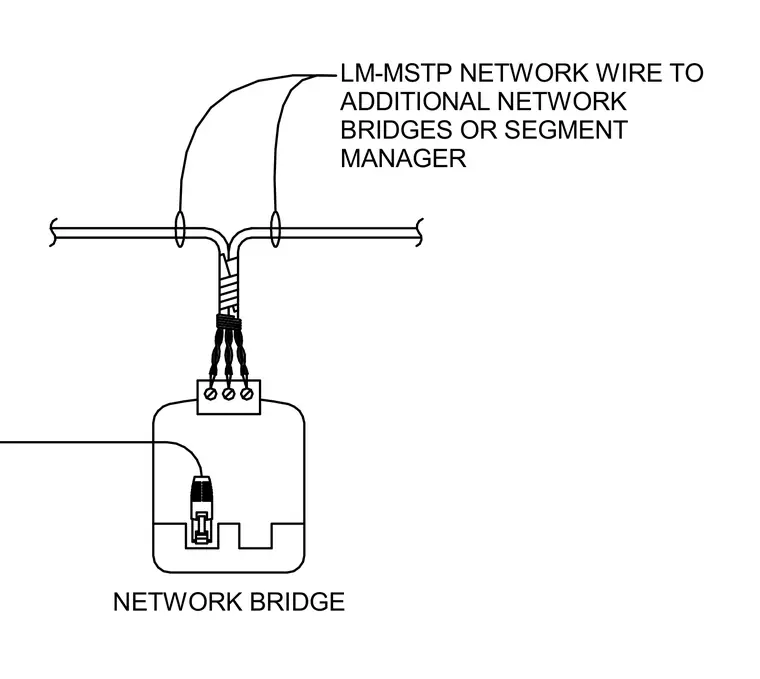

An LM-MSTP network wire connects to additional network bridges or a segment manager via a network bridge unit. Twisted-pair wires route into terminal screw connections on the top of the bridge. A secondary plug-in cable connects internally to the bottom port of the network bridge housing.
NETWORK BRIDGE LM-MSTP NETWORK WIRE TO ADDITIONAL NETWORK BRIDGES OR SEGMENT MANAGER
